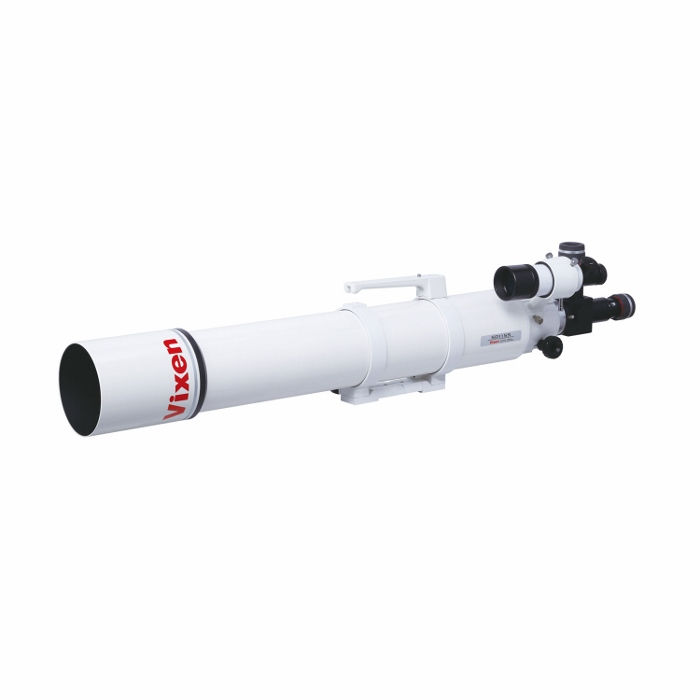

Vixen Telescope SXD2-PFL-SD115S

Vixen Telescope SXD2-PFL-SD115S

Specifications

Optical Tube

  • Objective lens, effective aperture

    115mm SD apohromatic, multicoated

  • Focal length (Focal ratio)

    890mm (f7.7)

  • Resolving power / Limiting magnitude

    1.01 arc seconds / 12.1

  • Light gathering power

    270×unaided eye

  • Dimensions / Weight

    125mm dia. and 930mm long / 6.2kg (Net 4.4kg)

  • Finder scope

    7X 50mm with illuminated reticle (7 degrees field of view)

Focuser

  • Adapter threads / Visual back

    60mm, 42mm for T-ring / 50.8mm and 31.7mm push fit (with Flip mirror)

  • Eyepieces

    SLV20mm (45X, 67' field of view), SLV5mm (178X, 17' field of view)

Mount

  • Type of mount

    SXD2 equatorial mount PFL.

Tripod

  • Leg type, material

    Large hex-shaped adjustable 2-section aluminum legs

  • Size / Weight

    Adjustable from 807mm to 1299mm in length, from 730mm to 1156mm in height, setup radius from 460mm to 706mm / 5.5 kg

Other

  • Accessories

    SXG half pillar, Parts case, Counterweight (1.9 kg x 1, 3.7kg× 1)

  • Photography

    Usable with Prime focus, Eyepiece projection and Aforcal imaging

  • Solar observation

    Available with sun projection screen set B

  • Total weight

    28.7kg (without battries and without eyepieces)

Configuration

  • Optical tube assembly
  • SXD2-PFL equatorial mount
  • SXG-HAL130 tripod

Accessories

  • Counterweight (1.9kg x 1, 3.7kg × 1)
  • Parts case
