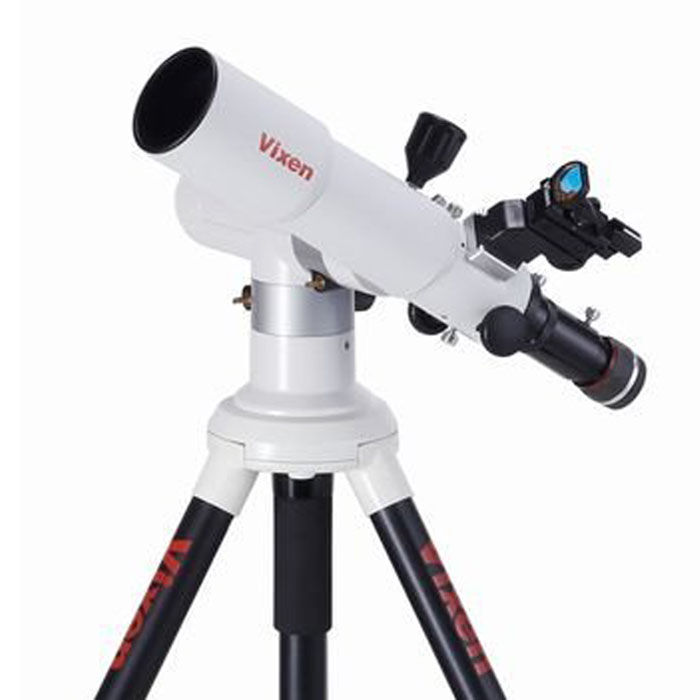

Vixen Telescope APZ-A62SS

Specifications
Optical Tubes

  •
    Objective lens, effective aperture

    62mm achromatic, multicoated

    •
  •
    Focal length (Focal ratio)

    520mm (F8.4)

    •
  •
    Resolving power / Limiting magnitude

    1.87 arc seconds / 10.7

    •
  •
    Light gathering power

    78x unaided eye

    •
  •
    Dimensions / Weight

    75mm dia. and 370mm long (305mm long for storage) / 1.8kg (Net 1.5kg)

    •
  •
    Finder scope

    XY Red dot finder (1x aiming device)

Eyepiece section

  •
    Focuser

    Crayford type (with lock knob), rotatable

    •
  •
    Adapter threads / Visual back

    42mm for T-ring, 37mm for filter / 31.7mm push fit

    •
  •
    Eyepieces

    SLV15mm (35x, 86' field of view), SLV4mm (130x, 23' field of view)

Mount

  •
    Mount type

    APZ Mount

    •
  •
    Size / Weight

    178mm x 258mm x 104mm / 3.8kg (incl. AZ counterweight)

Tripod

  •
    Leg type, material

    3-section aluminum legs with quick-release leg clamps

    •
  •
    Size / Weight

    Adjustable from 570mm to 1296mm in length, from 526mm to 1159mm in height, setup radius from 350mm to 710mm / 3.0 kg

Others

  •
    Accessories

    Built-in dovetail mounting plate, Soft carry case for OTA

    •
  •
    Photography

    Usable with Prime focus, Eypiece projection and Afocal imaging

    •
  •
    Solar observation

    Not available

    •
  •
    Total weight

    8.6kg (without eyepieces)
