Vixen Telescope AP-R130Sf

Vixen Telescope AP-R130Sf

Specifications
Optical tube
  • Primary mirror
    130mm parabolic mirror, multicoated
  • Focal length
    650mm (f/5)
  • Resolving power / Limiting magnitude
    0.89 arc sec. / 12.3
  • Light gathering power
    345x unaided eye
  • Dimensions / Weight
    L: 575mm x OD 160mm, 5.3kg (Body 4.0kg)
  • Finder scope
    6x30mm, 7°actual field of view
Drawtube
  • Visual back
    43mm, 42mm for T-ring, 31.7mm push-fit

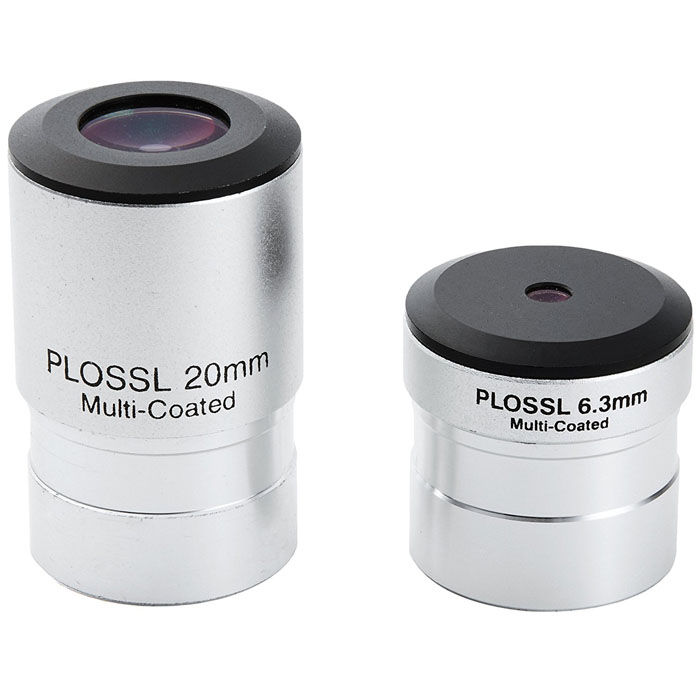

  • Eyepiece (Dia. 31.7mm)
    PL20mm (33x), PL6.3mm (103x)
Tripod
  • Material, Type
    Aluminum 3-section leg
  • Dimensions / Weight
    L:570⇔1,296mm, H:526⇔1,159mm, closed 598.4mm, Radius: 350⇔710mm, 3.0kg
Others
  • Accessories
    Counterweight 1kg x 1 pc., 1.9kg x 1 pc.
  • Photography
    Eyepiece projection, prime-focus, afocal imaging.
  • Solar observation
    Not possible
  • Total weight
    14.8kg without eyepiece
Accessories
  • Counterweight 1kg, 1 kg
  • Counterweight 1.9kg, 1 kg
Configuration
  • Optical tube assembly
  • AP equatorial mount
  • Eyepiece
  • APP-TL130 tripod
